In modern industrial charcoal processing and activated carbon manufacturing plants, dust control is no longer optional—it is a critical requirement for regulatory environmental compliance, workshop safety, and worker health. Guoxin Machinery’s Industrial Dust-Free Charcoal Crusher Machine is engineered to resolve the airborne emission challenges of traditional milling sectors.
By seamlessly integrating a high-velocity mechanical hammer mill with an advanced, automated pneumatic conveying and negative-pressure multi-stage dust extraction system, this heavy-duty machinery reduces bulk charcoal logs, briquette scraps, and coconut shells into uniform 5–200 mesh fines with zero fugitive dust emissions.
To streamline your plant planning and ensure perfect mechanical balancing within your processing line, our standard industrial dust-free crushing systems are configured across the following rigorous technical matrices:
| System Model | Crushing Chamber Layout | Throughput Capacity | Main Drive Power | Output Granularity Range | Certified Dust Catch Efficiency |
| GX-DF400 | High-Speed Heavy Hammers | 500 – 1,000 kg/h | 11 kW – 15 kW | 20 – 120 Mesh (Adjustable) | 99.5% Air Clean Rate |
| GX-DF600 | High-Speed Heavy Hammers | 1,000 – 2,000 kg/h | 22 kW – 30 kW | 5 – 200 Mesh (Adjustable) | 99.7% Air Clean Rate |
| GX-DF800 | Reinforced Dual-Rotors | 2,000 – 3,500 kg/h | 45 kW – 55 kW | 5 – 200 Mesh (Adjustable) | 99.9% Closed Loop Rate |
| GX-DF1000 | Continuous Heavy Industrial | 4,000 – 6,000 kg/h | 75 kW – 110 kW | Custom Milling Screen | 99.9% Closed Loop Rate |
Note: Final processing capacity is heavily dependent on the moisture content (recommended below 15%) and the specific hardness profile of the raw carbonized feedstocks.

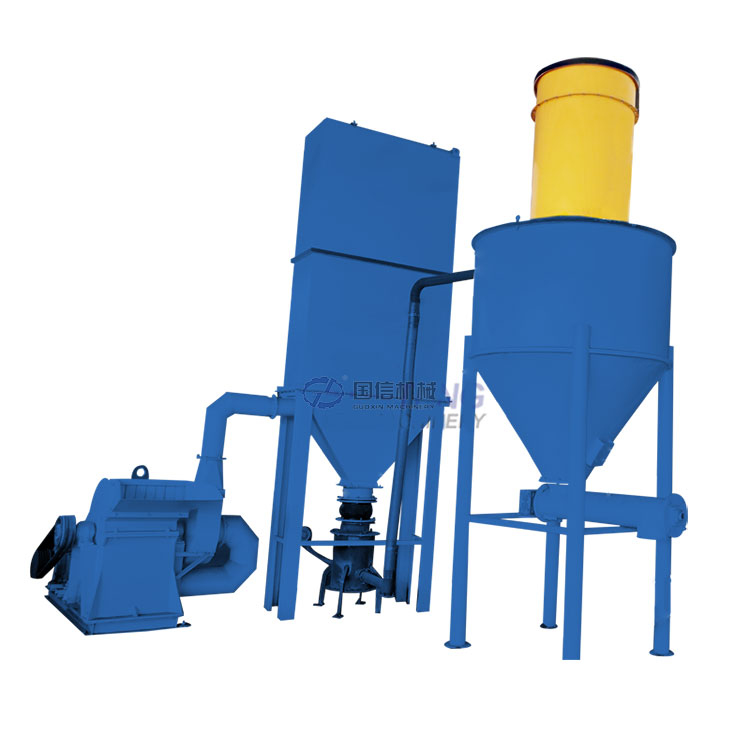

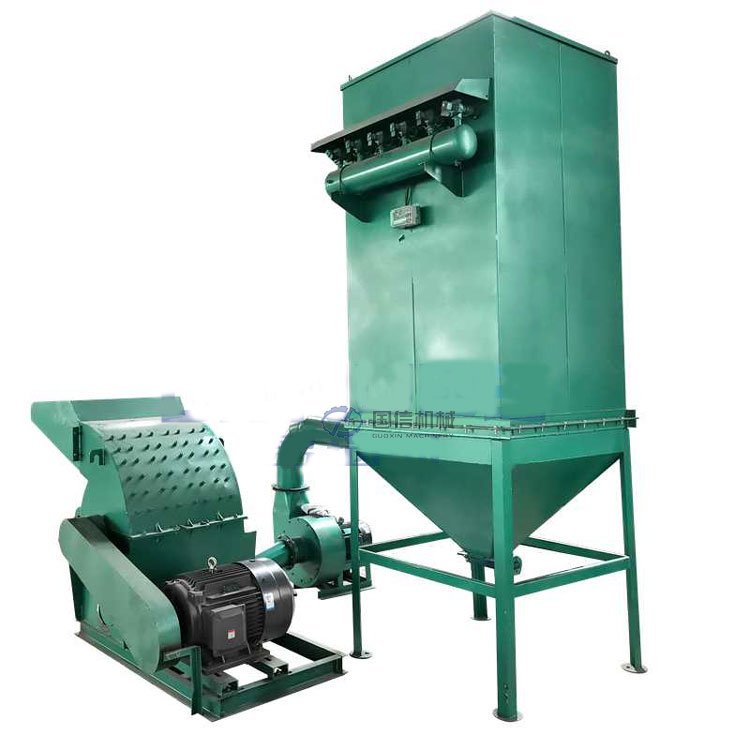

As displayed in our manufacturing assembly layout, this integrated system bypasses gravity-drop discharge in favor of a fully enclosed pneumatic cycle, consisting of four synchronized mechanical nodes:
Fabricated from structural carbon steel, the core crushing chamber houses high-wear manganese steel (65Mn) hammers. Rotating at high velocities, it shatters charcoal through intensive impact, shear, and grinding actions against internal tooth plates.
Primary Cyclone Separation Tower (Blue Structural Unit): The finely milled charcoal particles are immediately evacuated from the chamber via negative pressure. The primary cyclone utilizes centrifugal vortex forces to drop 95% of the qualified charcoal powder out of the airstream and into the sealed bottom outlet.
Secondary Pulse-Jet Baghouse Filter (Secondary Blue Tower): To capture the ultra-fine microscopic carbon dust that escapes standard cyclones, the secondary airstream is routed through high-density filter socks. Periodically, automated compressed air blasts (pulse jetting) dislodge the micro-fines into a collection hopper, releasing clean, certified air.
High-Pressure Induced Draft Centrifugal Fan: Located at the tail end of the loop, this fan maintains the entire circuit under continuous negative pressure, preventing any internal charcoal dust from blowing outward through feed hoppers or structural seals.
The consistent, adjustable particle size distribution generated by this negative-pressure hammer mill serves as the foundational feedstock for multiple high-value secondary processing sectors:
Activated Carbon Facilities: Prepares raw charcoal fines down to precise mesh tolerances required for optimal chemical or steam activation cycles in columnar and granulated structures.
Premium Shisha & Hookah Charcoal Lines: Delivers ultra-fine, consistent powder 100–200 mesh needed to manufacture flawless, high-density shisha charcoal tablets with mirror-smooth surface finishes.
Industrial BBQ Briquetting Plants: Processes irregular carbonized biomass chunks into uniform fine crumbs ideal for consistent binder blending and high-output roller extrusion.
[Bulk Charcoal Feedstock] ➔ [Hopper Intake] ➔ [High-Speed Hammer Impact] ➔
[Sieve Screen Sizing] ➔ [Negative Pressure Ducting] ➔ [Cyclone Settling (95% Drop)] ➔
[Pulse Jet Bag Filtration (4.9% Fine Capture)] ➔ [Clean Exhaust Air Release]
The raw carbonized feedstock enters the milling chamber via the gravity hopper. The material is instantly subjected to continuous, high-frequency impacts from the mechanical hammers. Once the particles are reduced smaller than the integrated lower sieve screen openings, the high-pressure draft fan vacuums them through the green structural ductwork into the dual blue cleaning towers, separating the product cleanly from the airflow.
Guoxin Machinery operates as a premier global EPC (Engineering, Procurement, and Construction) contractor specializing in automated charcoal processing lines. We engineer fully integrated processing ecosystems from the ground up:
Tailored Air-Handling Engineering: Our Zhengzhou-based R&D department customizes fan static pressures and filter bag surface areas based on your local altitude and factory humidity profiles to guarantee dust-free operation.
Full Lifecycle Production Line Support: We supply and synchronize complete upstream and downstream equipment matrices, including continuous carbonization kilns, double-shaft intensive binders/mixers, hydraulic forming presses, and multi-tier intelligent mesh belt drying tunnels.
Global Field Technician Service: Our field service network provides on-site mechanical assembly, electrical integration with master control panels, calibration of air-to-cloth ratios, and comprehensive safety training for plant operators.
