In the global premium Shisha (Hookah) market, profitability is defined by three strict quality benchmarks: Crystal-white ash, 90+ minute burn duration, and zero chemical odor.
We provide turnkey industrial solutions that transform raw coconut shells and fruitwood into export-grade charcoal cubes and tablets. Our integrated production line balances the recovery of biomass feedstocks with the manufacturing of high-margin energy commodities.
| Machine Model | Core Pressing Mechanism | Production Capacity | Compatible Tablet Geometries | Total Installed Power |
| GX-SP100 | Hydraulic Cylinder Press | 500 – 800 kg/h | 25mm/26mm Cubes, 22mm Flats | 22 kW |
| GX-SP200 | Heavy Hydraulic Matrix | 1.2 – 2.0 Tons/h | Customizable Bulk Blocks | 45 kW |
| GX-MT33 | Mechanical Rotary Punch | 15,000 – 20,000 pcs/h | 33mm / 40mm Instant-Light Rounds | 15 kW |
| GX-MT40 | High-Speed Rotary Press | 25,000 pcs/h | Precision Embossed Tablets | 18.5 kW |
For investors, the value-add of this production line lies in the significant thermochemical upgrade of the feedstock.
| Metric | Raw Coconut Shell | Carbonized Shisha Charcoal |
| Fixed Carbon Content | ~18% – 24% | > 85% |
| Caloric Value (LHV) | 3,800 – 4,200 kcal/kg | 7,200 – 7,800 kcal/kg |
| Volatile Matter | 70% – 75% | < 12% (Odorless threshold) |
| Ash Content | ~2% | < 3% (White/Silver Ash) |

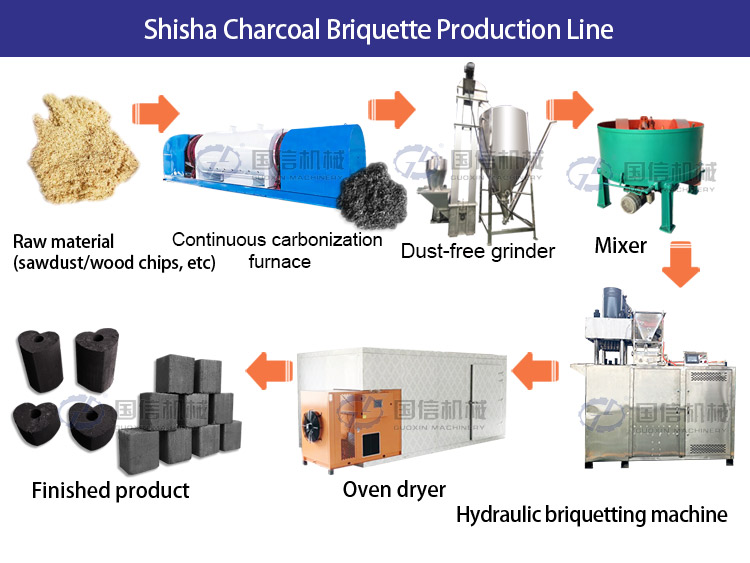

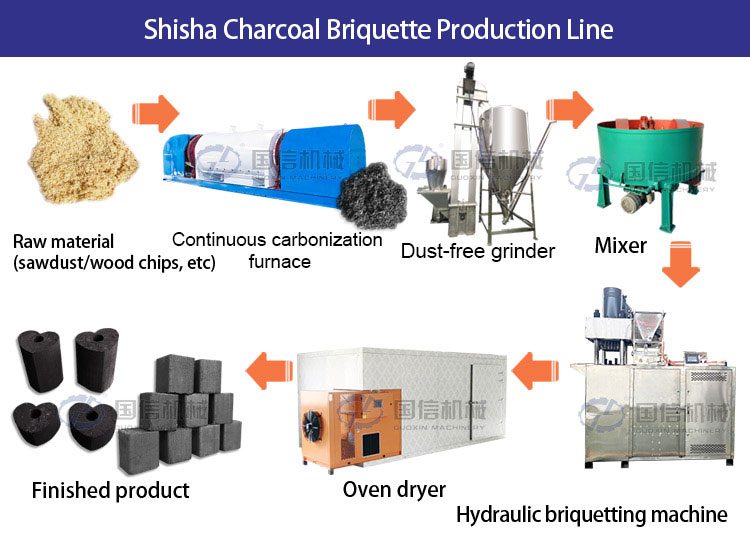

To achieve seamless, automated output that satisfies global commercial standards, our integrated sheesha processing machine setup links individual refining, mixing, and molding units into a continuous closed-loop network.

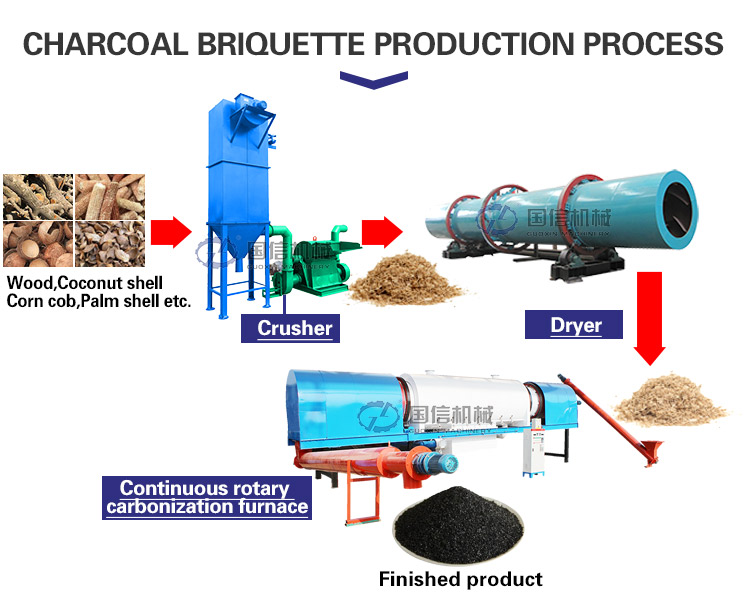

Before entering the shaping press, raw coconut shells undergo high-temperature anaerobic distillation in our continuous rotary carbonization furnace. This unit maintains a calibrated thermal curve (450–600°C) to fully vent volatile gases, ensuring the charcoal base material is completely odorless and smoke-free.
Carbonized charcoal is reduced to a 200–300 mesh micro-powder. It is then fed into our industrial wheel muller mixer. Here, water and food-grade natural binders are sheared and blended into the carbon powder. This uniform moisturizing process is crucial for preventing structural micro-cracks in the final briquettes.
This hydraulic press is the mechanical heart of the entire shisha charcoal processing machine line.
Massive Compaction Force: Utilizing 100 to 200 tons of structural hydraulic pressure, it completely forces out trapped air pockets from the charcoal paste. This high-density compression directly guarantees a long burn duration of 90 to 120 minutes.
Food-Grade Metallurgy: All compression dies and material contact zones are CNC-machined from SUS304 stainless steel, preventing rust contamination and maintaining a premium, glossy surface finish on the tablets.
Freshly pressed green tablets are automatically transferred via a speed-controlled conveyor into our constant-temperature mesh belt dryer. By removing internal moisture down to below 5% under a gentle 60–80°C profile, the briquettes harden completely, ensuring they will not spark, flake, or shatter when placed on a hookah bowl.
| Parameter | Technical Specification |
| Operating Temperature | 450 – 600°C(Carbonization) / 60 – 80°C(Drying) |
| Installed Power | 120 kW – 350 kW (Scale-dependent) |
| Daily Output | 5 – 20 Tons per 24h shift |
| Factory Footprint | 1,500 m² – 3,000 m² (Includes material storage) |
| Core Materials | SUS304 Stainless Steel (For press molds and mixing contact parts) |
Investing in a Guoxin integrated line offers a rapid payback period, typically between 10 to 14 months. Our engineering team provides not only the machinery but also proprietary binder formulas that utilize food-grade, chemical-free ingredients to ensure your product meets international health standards for Shisha consumption.
Inquire for a Customized Factory Layout & Pricing
Consult an Engineer: How to Achieve 100% White Ash with Your Local Material
Q1: How long does it take to switch molds on the shisha processing machine for different tablet sizes?
A: Our stainless steel hydraulic presses are engineered with quick-change mold plates. A single operator can switch the forming dies from 25mm cubes to 33mm round tablets in approximately 30 to 45 minutes using standard workshop tools, allowing your plant to adapt quickly to changing market orders.
Q2: Can the hydraulic pressure of the sheesha processing machine be adjusted for different material densities?
A: Yes. The master PLC console allows real-time pressure configuration between 50 and 200 tons. If you switch your raw input from premium coconut shell powder to hardwood charcoal powder, operators can digitally recalibrate the compaction stroke and dwell time to maintain uniform Cold Crushing Strength (CCS).
Q3: What is the technical difference between your Hydraulic Press and the Mechanical Rotary Press?
A: The hydraulic system (GX-SP series) delivers immense vertical force, making it the industry standard for dense 25mm/26mm shisha cubes that require a long burn time and high drop resistance. The mechanical rotary press (GX-MT series) utilizes high-speed mechanical punches, optimized for the high-volume, rapid extrusion of 33mm and 40mm instant-light round tablets.
Q4: Can Guoxin customize the sheesha processing machine to match our country’s local electrical grid?
A: Absolutely. Since these heavy industrial forming lines utilize high-horsepower main motors, we custom-wind all motor stators to align precisely with your localized industrial power specifications (e.g., 380V/50Hz/3Phase for the Middle East and Asia, or 460V/60Hz for North American markets) prior to factory shipment.
