Solution Overview

Our Integrated BBQ Charcoal Solution provides a stable, industrialized process for transforming biomass (wood chips, coconut shells, fruit wood) into premium pillow-shaped charcoal briquettes.

We focus on maximizing fixed carbon and minimizing production energy costs through a closed-loop syngas recycling system

Performance Benchmarking

BBQ Charcoal Characteristics

• High density and strength

• Low ash content

• Stable burning time

• Uniform shape and size

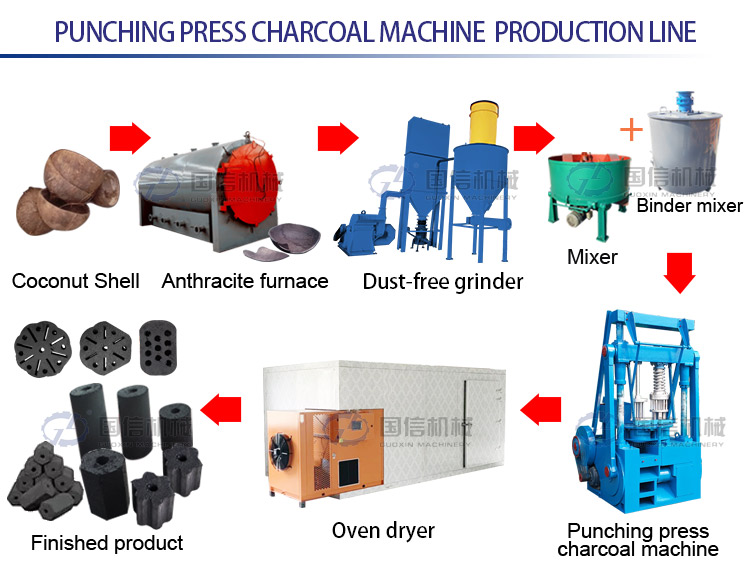

Technical Process & Data

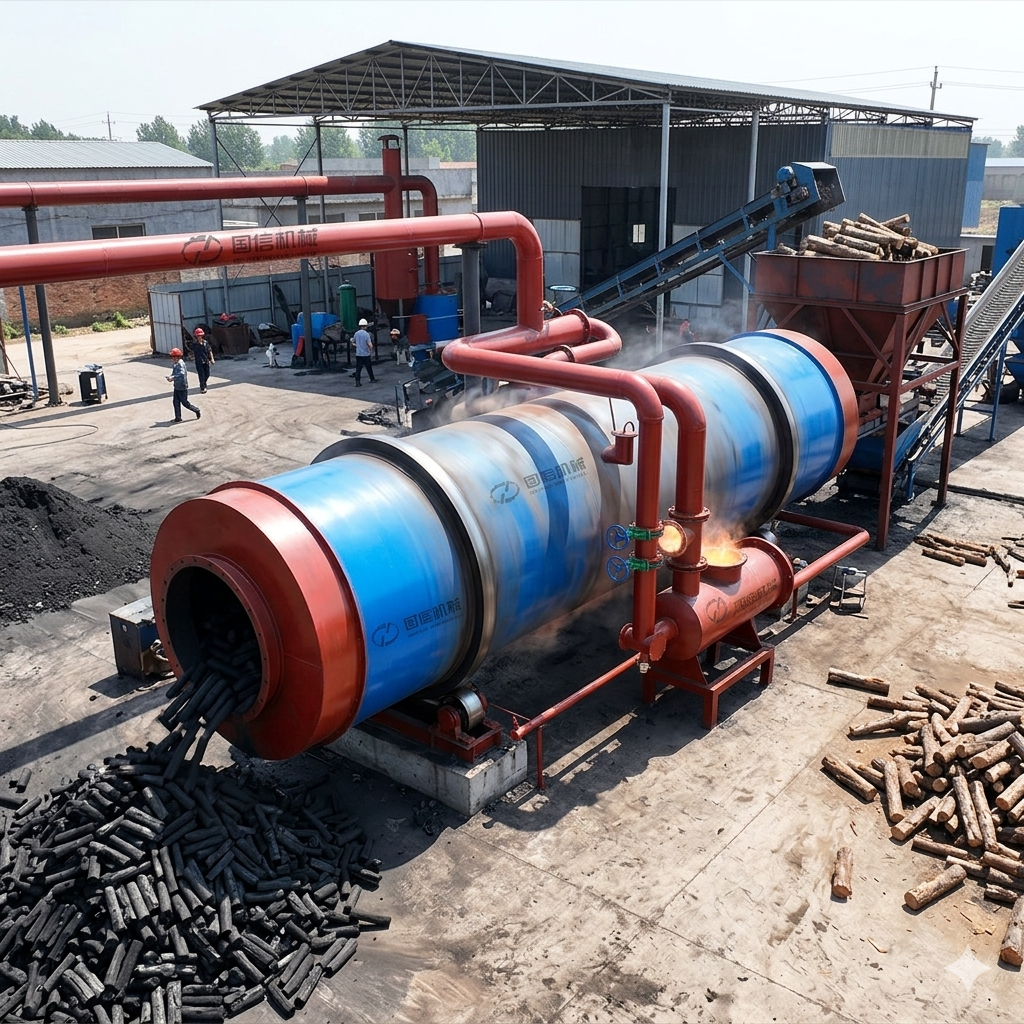

Continuous Carbonization (Pyrolysis Phase)

• Spec: Rotary continuous furnace, 450°C-550°C temp control.
• Innovation: Syngas is recovered and reused for the drying section, reducing total energy consumption by 30%.

Material Refinement (Pulverizing)

• Spec: Charcoal crusher with pulse dust collector.
• Result: Particle size < 3mm, ensuring a smooth, crack-free surface on the final briquette.

Scientific Binder Mixing

• Spec: Double-shaft high-torque mixer.
• Benefit: Uniform distribution of eco-friendly binders (only 3%-5% ratio required), maintaining structural strength for long-distance shipping.

Precision Hydraulic Forming Technology

The core advantage of hydraulic pressing over mechanical extrusion lies in its ability to deliver constant, multidirectional pressure, which is critical for biomass materials with low plasticity:

• Adjustable Tonnage: Operators can calibrate the pressing force based on the specific feedstock (wood charcoal, bamboo charcoal, or coal fines) to reach a density of ≥1.2g/cm³.
• Multi-Shape Capability: The hydraulic system allows for rapid mold changes, supporting the production of traditional BBQ pillow shapes, hexagons, or high-volume rounds with embossed branding.
• Density Uniformity: The vertical pressure stroke ensures that the core of the briquette is as dense as the surface, preventing the “inner-soft” failure common in lower-quality machinery.

Optimized Drying & Packaging

• Spec: Multi-layer mesh belt dryer or rotary drum dryer
• Result: Rapid moisture removal without thermal cracking.

Feasibility & ROI Analysis

Raw Material Versatility

Material Flexibility: Supports various agricultural wastes (wood chips, nutshells, straw), with low or even zero raw material costs.

Energy Independence: Overflow heat generated during carbonization can be directly supplied to dry conditions, significantly reducing electricity bills or additional fuel expenses.

Market Premium: The produced “lime/high-density” charcoal blocks typically command a 20%-40% higher price in international markets (such as the Middle East or Europe) compared to ordinary loose charcoal.

Common BBQ Briquette Shapes

• Pillow shape
• Oval shape
• Square shape
• Customized mold designs

System Components

• Carbonization System: Continuous Rotary Carbonization Kiln (PLC Controlled).
• Crushing Unit: Hammer Crusher with screening function.
• Mixing Unit: Liquid Binder Dosing System + Double-shaft Mixer.

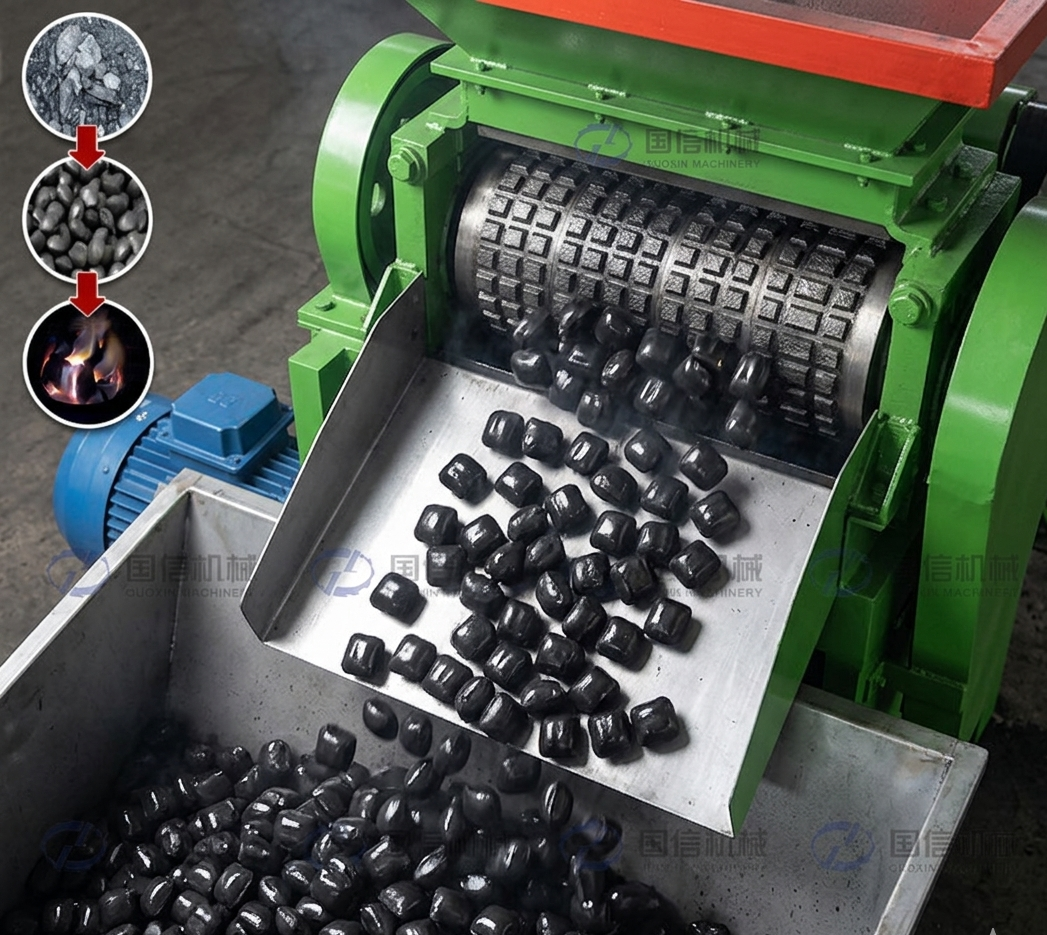

• Molding Unit: Professional BBQ Charcoal Roller Press.
• Drying Unit: High-efficiency Mesh Belt Dryer or Rotary drum dryer.

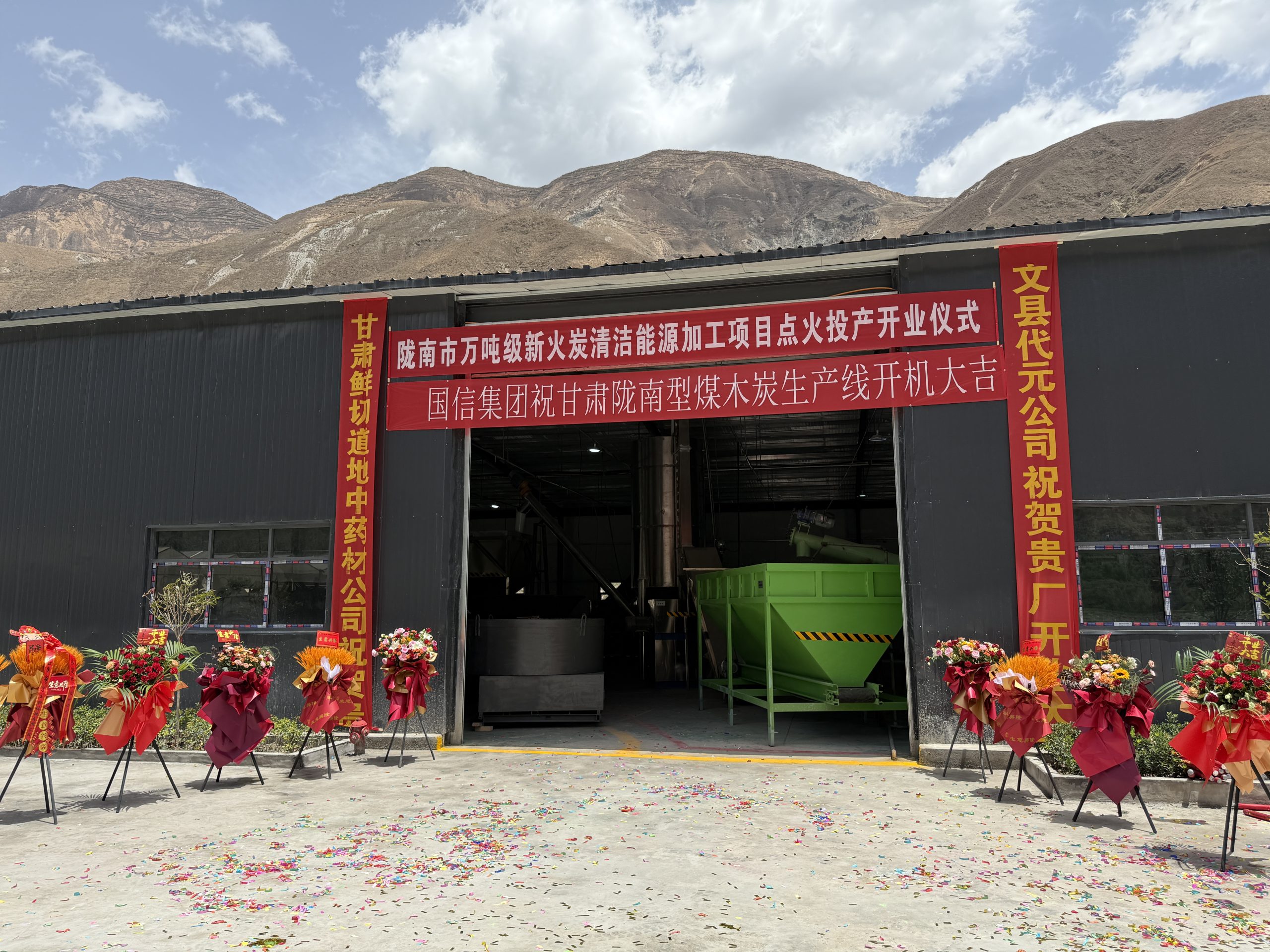

Project Delivery

FAQ

Q1: How can we ensure the BBQ charcoal is Smokeless?

A: Smoke comes from impurities. Our high-temperature carbonization ensures complete pyrolysis of volatile matter. Combined with our organic binder formula, the final product is 100% smokeless and odorless.

Q2: What is the lifespan of the roller molds?

A: We use high-manganese alloy steel with specialized heat treatment. Under normal maintenance, the molds can produce 2,000 – 3,000 tons of charcoal before replacement.

Q3: Can we customize the capacity?

A: Yes. We offer standard lines from 500kg/h to 10t/h. We provide custom CAD factory layouts based on your site’s physical dimensions.
