The transition from loose biomass waste to high-density fuel pellets is a critical process for industrial energy recovery. A professional Biomass Pellet Production Line is engineered to handle heterogeneous raw materials—ranging from high-moisture forestry residues to fibrous agricultural waste—transforming them into standardized, high-calorific pellets (6mm–10mm) suitable for industrial boilers and power generation.
At Guoxin Machinery, we provide integrated pelletizing systems designed for 24/7 operational stability, high mechanical pressure, and low maintenance OpEx.

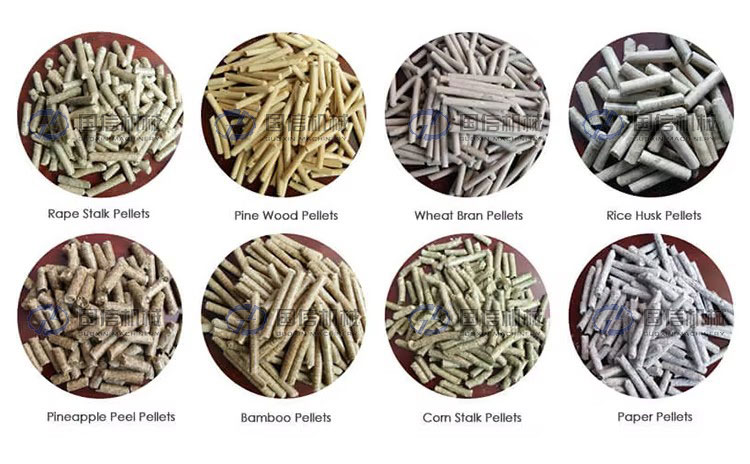

The viability of a pelletizing project depends on the system’s ability to process diverse feedstocks. Our production lines are calibrated for:
Wood & Forestry Residues: Sawdust, wood chips, shavings, bark, and timber processing offcuts. These materials generally have high lignin content, which acts as a natural binder during high-pressure pelletizing.
Agricultural Byproducts: Rice husk, wheat straw, corn stalks, peanut shells, sunflower husks, and bagasse.
Forestry & Garden Waste: Tree branches, bamboo dust, palm fiber (EFB), and coconut shells.
Organic Waste & Fertilizer: Poultry manure (chicken, cattle, pig), biogas residue, and industrial sludge (when blended with biomass carriers).
Forage & Feed: Grass, alfalfa, and mixed fodder for livestock feed applications.
An industrial-grade biomass pellet plant requires a synchronized workflow to ensure pellet density and structural integrity.
Raw biomass such as branches or stalks must be reduced to a uniform particle size (3mm–8mm). We utilize Heavy-Duty Wood Shredders and Hammer Mills to ensure the feedstock is fine enough for the pellet mill dies to compress effectively.
Moisture control is the most critical variable in pelletizing. Raw materials often exceed 40% moisture, while the ideal pelletizing range is 12%–18%. Our Rotary Drum Dryers utilize controlled airflow to stabilize moisture levels, ensuring the pellets do not crack or crumble upon discharge.

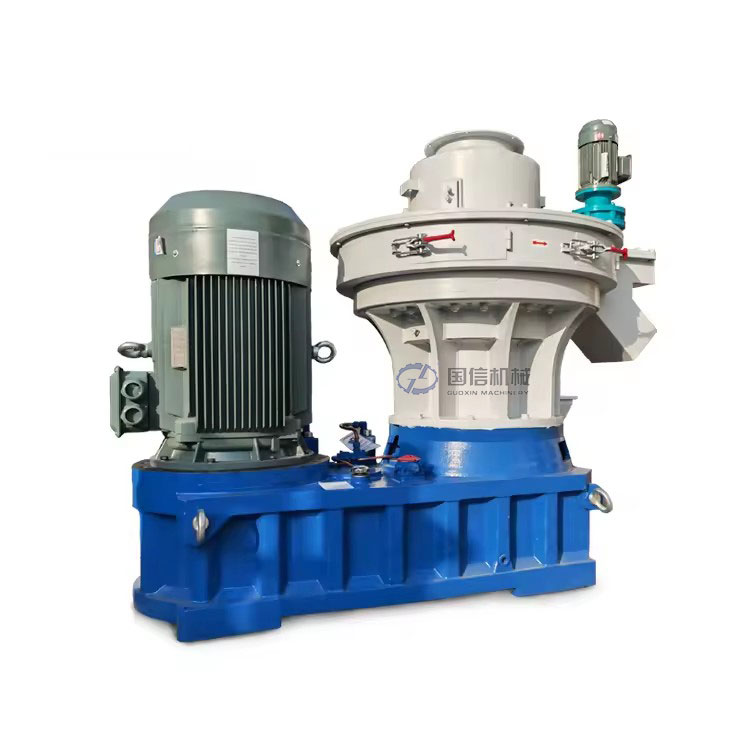

The heart of the line is the Vertical Ring Die Pellet Mill.
Mechanical Logic: The material is fed vertically into the ring die, where high-torque rollers force it through precision-machined holes.
Design Advantage: The vertical design allows for even material distribution and better heat dissipation, which is essential for processing difficult-to-bond biomass like rice husk or palm fiber.
Freshly extruded pellets exit the machine at high temperatures (up to 90°C) and remain relatively soft. The Counter-Flow Cooler reduces the temperature to ambient levels, “locking” the lignin bonds to increase hardness and durability for transport.
The Vibratory Screening Machine removes fine dust and broken fragments. This “fines” material is automatically recycled back into the pellet mill, ensuring 100% material utilization and a clean final product.
Final pellets are channeled into finished product bins or processed through Automated Bagging Scales for bulk transport or retail distribution.
Industrial buyers prioritize Mechanical Durability and Pellet Quality. Our systems focus on:
Alloy Steel Dies: Utilizing high-chromium or manganese alloy steel for dies to withstand the abrasive nature of biomass fines.
Automatic Lubrication: Ensuring the main bearings and rollers remain cooled and lubricated during continuous 24-hour shifts.
Integrated Production Logic: Our pellet lines are frequently integrated with Continuous Carbonization Furnaces for clients looking to produce high-value biochar, or Briquette Presses for larger-format industrial fuels.
Q1: What is the impact of feedstock moisture on pellet quality?
A: Moisture acts as both a lubricant and a heat transfer agent. If moisture is $>20\%$, the pellets will be too soft and prone to mold; if <10/%, the friction inside the die increases, leading to high energy consumption and potential die blockage. Our rotary dryers are essential for maintaining this narrow 12%–18% window.
Q2: How long does a Ring Die last when processing abrasive wood waste?
A: The lifespan depends on the silica content of the material. For standard sawdust, a high-quality alloy die typically lasts 800–1,200 hours. We provide specialized surface treatments for dies used with high-silica materials like rice husk to extend service life.
Q3: Can the same line produce both fuel pellets and animal feed?
A: Mechanically, yes. However, the compression ratios (die thickness) differ. Fuel pellets require higher pressure to achieve high calorific density, while feed pellets require specific die configurations to preserve nutritional integrity. We offer interchangeable die sets for multi-purpose facilities.
Q4: Is a binder required for wood pellet production?
A: For most wood species, no. The natural lignin in the wood softens under the heat of friction ($>80^\circ\text{C}$) and acts as a natural glue. For low-lignin materials like certain straws, a trace amount of organic binder or vegetable oil may be added to improve throughput.
