Traditional solid fuels often suffer from incomplete combustion and low heat output. Guoxin’s High-Pressure Multi-hole Charcoal Punching Machine is specifically engineered to solve these challenges. By applying massive mechanical pressure to carbonized powder, this machine produces the signature “honeycomb” structure that creates a natural chimney effect, significantly increasing oxygen intake and thermal efficiency.
Industrial-Grade Pressure (Density Control): Unlike light-duty versions, our press utilizes a reinforced mechanical linkage system that ensures a density of >1.3g/cm³. This results in a slower, more stable burn (4-6 hours) and zero breakage during long-distance transport.
Reinforced Alloy Molds (Wear Resistance): The punching heads are crafted from high-manganese alloy steel with specialized heat treatment, offering a service life 3x longer than standard carbon steel molds.
High-Oxygen Structural Design: Precise alignment of the “multi-hole” configuration optimizes airflow. This ensures the charcoal burns from the inside out, achieving Total Combustion with zero black core and minimum smoke.
Automatic Synchronized Feeding: Integrated with a PLC-controlled dosing system, the machine maintains a constant material ratio, preventing “half-pressed” briquettes and reducing waste by 15%.
Our multi-hole solution is highly versatile, supporting various industrial and catering requirements:
Hole Configuration: 9, 12, 19, or 32 holes (Customizable).
Briquette Shapes: Cylindrical, Square, or Hexagonal.
Core Diameter: Range from 80mm to 220mm.
For maximum ROI, we recommend the following integrated line configuration:
Pre-processing: Continuous Rotary Carbonization —-Hammer Crushing.
Formulating: Double-shaft Mixing (with Guoxin’s eco-friendly binder formula).
Molding: Multi-hole Punching Press.
Finishing: Multi-layer Mesh Belt Drying (reducing moisture to <5%).

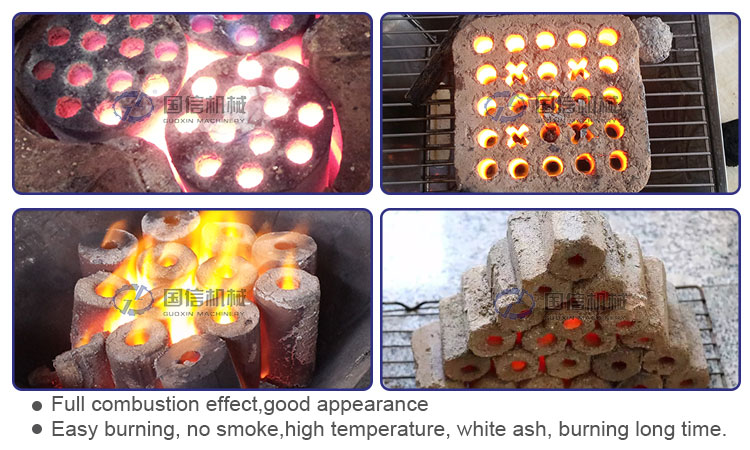

multi-hole-charcoal-combustion-efficiency-test
Q: Can this machine process coal powder and charcoal powder on the same line? A: Technically, yes, but the binder ratio and punching pressure settings differ. We provide customized pressure adjustments and specific formulas for both biomass charcoal and mineral coal to ensure optimal hardness.
Q: What is the maintenance cycle for the punching pins? A: Under 24/7 industrial operation, the alloy pins typically require inspection every 3,000 tons. Our “Quick-Change” mold design allows for a complete replacement in under 45 minutes, minimizing downtime.
