The performance of a solid fuel briquette is fundamentally determined by its airflow dynamics. Guoxin’s Honeycomb Charcoal Briquette Machine is a heavy-duty mechanical punch press specifically engineered to mass-produce the signature “multi-hole” geometric structure.

Unlike standard solid briquettes, this multi-hole (honeycomb) design creates a natural vertical chimney effect. This internal airflow channel ensures oxygen reaches the absolute core of the fuel block, achieving a 99% complete combustion rate and delivering a stable, high-heat output for over 5 hours in catering, BBQ, or industrial boiler applications.

1. Core Mechanical Advantages

To press carbonized dust into a high-density, multi-hole matrix without fracturing the internal walls, the machinery relies on precise mechanical force:

• 100-Ton Mechanical Linkage: Driven by a massive crankshaft-and-connecting-rod system, the press delivers up to 100 tons of instantaneous downward impact pressure. This achieves a final briquette density of >1.3g/cm³, ensuring the fragile honeycomb walls remain completely intact during automated drying and long-distance shipping.
• Anti-Abrasive Alloy Tooling: The multi-pin punching heads and corresponding mold sleeves are CNC-machined from High-Manganese Alloy Steel (Mn13). Following a specialized vacuum heat treatment, the mold lifespan is extended to 3,000+ tons of continuous production before replacement is necessary.
• Synchronized Volumetric Dosing: The machine is equipped with an automated, cam-driven sweeping feeder. This ensures every single mold cavity receives the exact same volume of raw material per cycle, eliminating density fluctuations and preventing crumbling.

2. Technical Specifications & Model Selection

We offer multiple mechanical chassis sizes to match your required output and specific briquette diameter. (Custom multi-hole configurations available upon request).

3. Heavy-Duty System Architecture

• Precision Punching Head: The vertical ram is guided by a heavy-duty 4-column slide track system. This ensures absolute micro-millimeter alignment between the upper punching pins and the lower mold cavity, preventing pin collision and reducing mechanical wear.
• Centralized Lubrication Hub: Operating at high RPMs requires flawless lubrication. Our centralized oil pump automatically distributes lubricants to the main crankshaft bearings and sliding columns, reducing maintenance downtime by 40%.
• Automated Ejection & Conveyance: Once stamped, a synchronized mechanical ejector pushes the honeycomb blocks onto an integrated flat-belt conveyor, safely transferring the green briquettes to the drying section without manual handling.

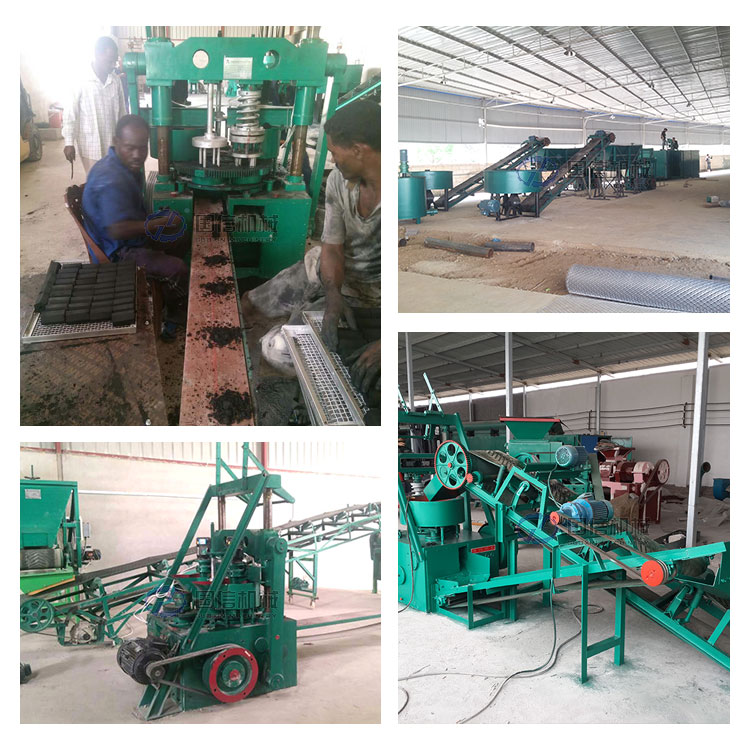

4. Closed-Loop Production Line Synergy

For premium export-quality output, the Honeycomb Punching Machine functions as the core of an optimized material processing ecosystem:

1. Pre-processing: Carbonized biomass or coal passes through a [Hammer Mill Crusher] to achieve a fine particle size of ≤ 3mm.
2. Conditioning: The fines are routed to a [Double-Shaft Mixer], where they are aggressively blended with Guoxin’s specialized binder formula and water to achieve optimal plasticity.
3. Mechanical Forming: The conditioned material is rapidly stamped into multi-hole honeycomb blocks by the press.
4. Thermal Stabilization: The finished blocks are conveyed through a [Continuous Mesh Belt Dryer] running at low-temperature profiles to reduce internal moisture to < 5%, locking in the rigid structure.

Request CAD Foundation Drawings for Plant Installation

5. FAQ

Q1: Why choose mechanical punching over hydraulic pressing for honeycomb shapes?

A: While hydraulic presses are excellent for high-density flat cubes (like Shisha charcoal), mechanical crankshaft punching operates at a much higher frequency (up to 45 punches per minute). The instantaneous mechanical impact is specifically better suited for clearing the complex multi-pin mold designs without material sticking, ensuring high-speed mass production.

Q2: Can I customize the hole pattern and diameter for my specific fuel market?

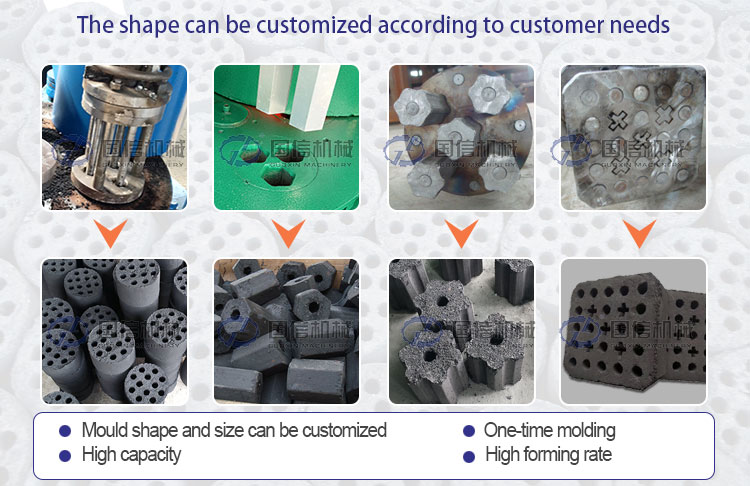

A: Absolutely. We provide complete custom mold engineering. Whether you require a standard 9-hole/120mm pattern for household heating in specific regions, or a dense 32-hole pattern for rapid ignition in industrial boilers, our CNC department will machine the exact airflow configuration required.

Q3: Does this machine require a specialized factory foundation?

A: Yes. Due to the high kinetic impact force generated by the 100-ton crankshaft mechanism, the machine produces significant dynamic loads. We provide a detailed Dynamic Load Layout blueprint, and we strictly require a reinforced concrete foundation (typically 300mm–500mm depth depending on the machine model) to absorb operational vibrations and protect the machinery’s alignment.
