Product introduction

Coal slime rotary dryer is an industrial dryer used to remove moisture from sand. The rotary coal slime dryer is widely used in industries like construction, mining, foundries, and chemical processing to ensure that the coal slime achieves the proper dryness for further processing or use. The coal slime rotary dryer machine uses a rotating drum to process the sand, efficiently evaporating the moisture content through the use of hot air.

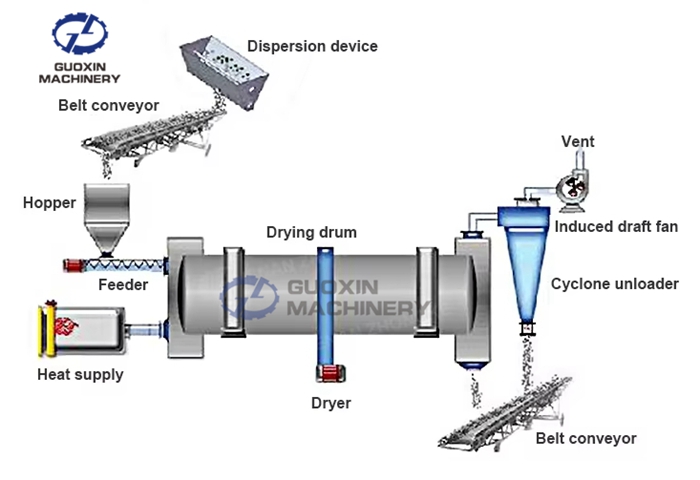

Working Principle

1. The material first enters the inner drum, because there is a spiral plate fixed in the inner drum, when the dryer rotates and works, the spiral plate will stir the material and make the material move.

2. When the material reaches the right side of the drum, it will enter the second drum for further drying.

3. The same working principle, the material enters the outer drum, during the drying process, the material will be dried three times, so the material can be completely dried in this process.

Product Advantages

1. Wide application fields: suitable for many fields such as food, chemical industry, pharmaceutical, agriculture, building materials, metallurgy, mineral processing, etc.

2. Flexible capacity: large diameter, can accommodate a large amount of materials, and can adjust the length to suit different drying needs.

3. Easy operation: adopts a fully automatic control system, easy to operate.

4. Convenient maintenance: simple structure, easy to clean and maintain.

Guoxin has been engaged in the production and development of drying equipment for many years. We have experience in drying hundreds of different materials. We can provide technical guidance to customers.

Moisture input: <85%. Moisture output: 10-15%.

Heat source: coal, natural gas, diesel, wood chips, boiler, etc.

Drying temperature: 0-300 degrees Celsius.
